Crossrail is the biggest engineering project in Europe and forms a major part of the Mayor’s Transport Strategy. When it opens in 2018, Crossrail will connect 37 stations, including Heathrow airport and Maidenhead in the west with Canary Wharf, Abbey Wood and Shenfield in the east.
I was asked to assist in the schematic 3D visuals for the project. Not only did the visuals need to look good, they also needed to be easily read with different colours designated to different areas of the structures.
I was asked to assist in the schematic 3D visuals for the project. Not only did the visuals need to look good, they also needed to be easily read with different colours designated to different areas of the structures.
Oxford Street & Tottenham Court Road
Bond Street Plan
Tottenham Court Road Station Cutthrough

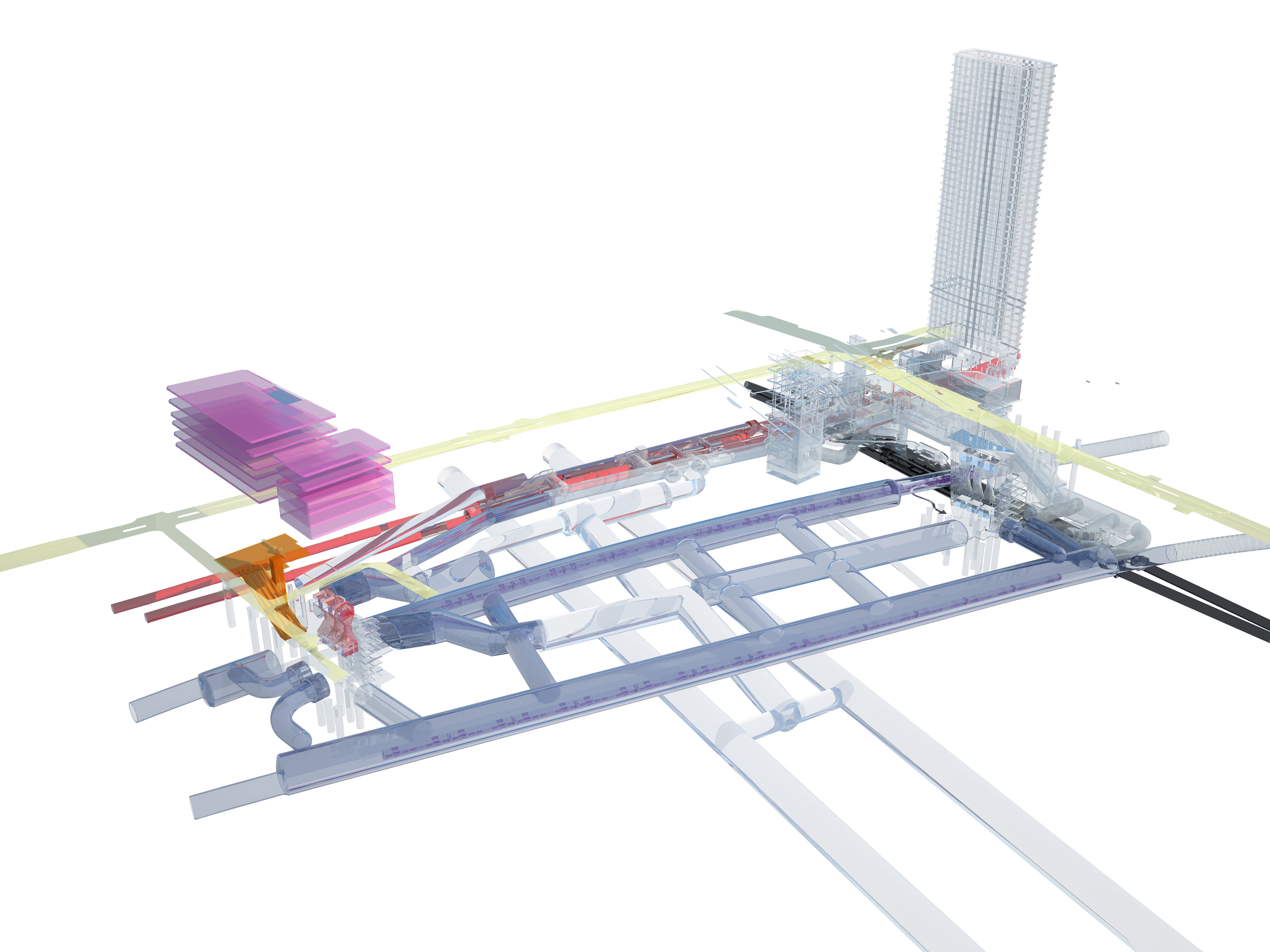

Tottenham Court Road Station Schematic
Tottenham Court Road Station Schematic
Visualised by Raj Lall. Photoshop work by Greg Hempsall
Visualised by Raj Lall. Photoshop work by Greg Hempsall
